About Flexible Architecture of NAYO (FAN)
Tired of being forced to choose between off-the-shelf automation systems that lack specific functionality or offer excessive, costly performance?
NAYO redefines flexibility with our platform-based FAN system. Its core modular components can be freely configured to create a solution tailored to your precise needs.
The workstation includes five key modular components: liquid handling base unit, pipetting module, adaptive force gripper, multi-function arm and on-deck modules.
Whether your workflows involve high-throughput drug screening, cell culture or ELISA assays, FAN adapts seamlessly to your application requirements, delivering reliability and efficiency without compromise.
By integrating standardized yet customizable modules, FAN simplifies customization while ensuring rapid deployment of the scalable performance—empowering your lab.
NAYO redefines flexibility with our platform-based FAN system. Its core modular components can be freely configured to create a solution tailored to your precise needs.
The workstation includes five key modular components: liquid handling base unit, pipetting module, adaptive force gripper, multi-function arm and on-deck modules.
Whether your workflows involve high-throughput drug screening, cell culture or ELISA assays, FAN adapts seamlessly to your application requirements, delivering reliability and efficiency without compromise.
By integrating standardized yet customizable modules, FAN simplifies customization while ensuring rapid deployment of the scalable performance—empowering your lab.
Multi-Function Arm (MFA)
To achieve optimal experimental workflows and pathways tailored to diverse application scenarios, our single-channel pipetting modules, fixed-channel pipetting modules, and adaptive force gripper offer hundreds of configurable combinations through flexible integration. This adaptability ensures seamless adaptation to your increasingly complex and evolving requirements.

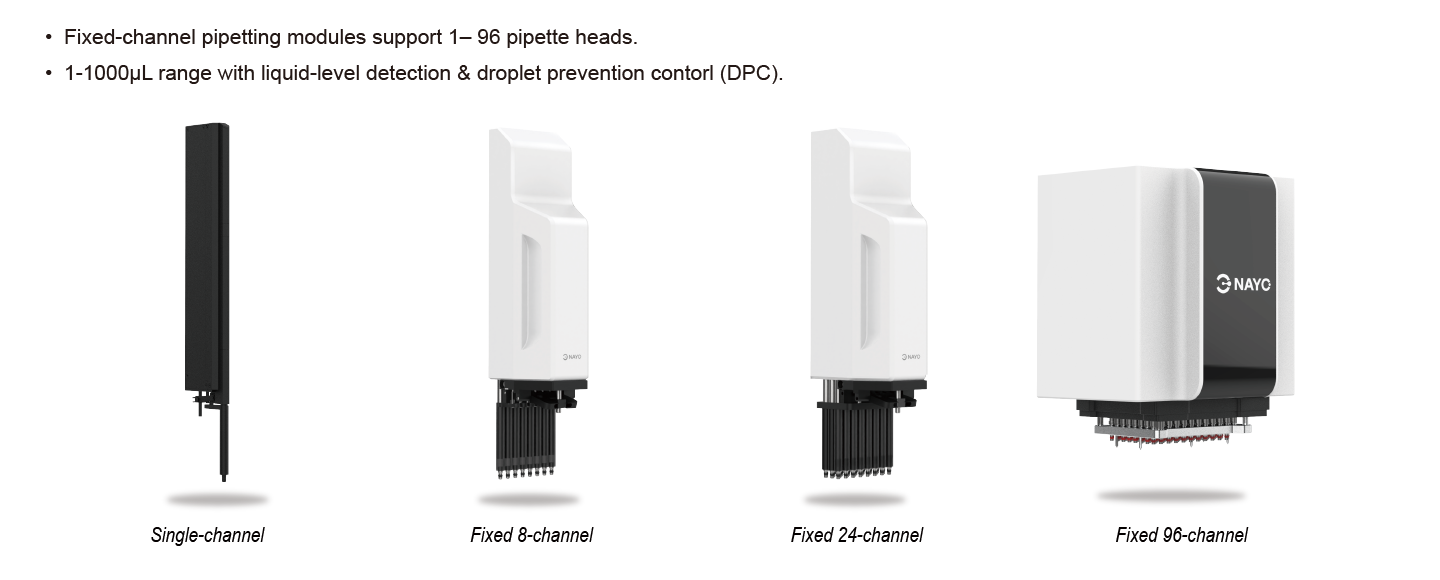

1. Fixed-Channel Pipetting Modules
2. Single-Channel Pipetting Modules
3. Single-Channel Pipetting Modules Combination
4. MFA Technology
5. Adaptive Force Gripper
6. MFA Technology
Freely configurable combinations of fixed-channel pipetting modules, single-channel pipetting modules, and adaptive force gripper module.
Based on application requirements, users can choose between single MFA or dual MFA configurations, flexibly selecting fixed-channel pipetting modules, flexible-channel pipetting modules, and combining with adaptive force gripper module. This versatile combination not only covers from basic operations to high-throughput operations, but also significantly enhances the efficiency and automation level of complex experimental workflows.
Flexible Pipetting Modules Series
| Order No. | Description |
| 01N | Single-channel pipetting module |
| 02N | Dual-channel pipetting module |
| 04N | Flexible 4-channel pipetting module |
| 08N | Flexible 8-channel pipetting module |
| 12N | Flexible 12-channel pipetting module |
| 01G | Single-channel pipetting module & Gripper |
| 02G | Dual-channel pipetting module & Gripper |
| 04G | Flexible 4-channel pipetting module & Gripper |
| 08G | Flexible 8-channel pipetting module & Gripper |
MFA Series for Mid-Throughout Solution
| Order No. | Description |
| 80N | Fixed 8-channel pipetting module |
| 81N | Fixed 8-channel & Single-channel pipetting module |
| 82N | Fixed 8-channel & Dual-channel pipetting module |
| 84N | Fixed 8-channel & Flexible 4-channel pipetting module |
| A0N | Fixed 24-channel pipetting module |
| A2N | Fixed 24-channel & Dual-channel pipetting module |
| A4N | Fixed 24-channel & Flexible 4-channel pipetting module |
| 80G | Fixed 8-channel pipetting module & Gripper |
| 81G | Fixed 8-channel & Single-channel pipetting module & Gripper |
| 82G | Fixed 8-channel & Dual-channel pipetting module & Gripper |
| 84G | Fixed 8-channel & Flexible 4-channel pipetting module & Gripper |
| A0G | Fixed 24-channel pipetting module & Gripper |
| A2G | Fixed 24-channel & Dual-channel pipetting module & Gripper |
| A4G | Fixed 24-channel & Flexible 4-channel pipetting module & Gripper |
MFA Series for High-Throughout Solution
| Order No. | Description |
| 96N | Fixed 96-channel pipetting module |
| 96G | Fixed 96-channel pipetting module & Gripper |
Tube Rotation and Gripping Module
| Order No. | Description |
| R2N | Dual-channel |
| R4N | Flexible 4-channel |
On-Deck Module
| Heater Shaker Module (HSM) |
Temperature Control Module (TCM) |
Temperature-controlled Shaker Module (TCS) |
Automated Shaker Module (ASM) |
|||||||
| Mixing Frequency Range | 200 - 2000 rpm | 200 - 3000 rpm | 200 - 5000 rpm | / | 200 - 2000 rpm | 200 - 3000 rpm | 200 - 5000 rpm | 200 - 2000 rpm | 200 - 3000 rpm | 200 - 5000 rpm |
| Mixing Orbit | 3 mm | 2 mm | 1.2 mm | / | 3 mm | 2 mm | 1.2 mm | 3 mm | 2 mm | 1.2 mm |
| Control Range | RT+5 - 99℃ | 0 - 120℃ | 4 ~ 99℃ | / | ||||||
| Heating Rate | 25-95℃ ≥12 K/min | 4-21℃ ≥20 K/min 21-95℃≥8 K/min |
4-21℃ ≥14.5 K/min 21-95℃≥11 K/min |
/ | ||||||
| Cooling Rate | / | 95-21℃ ≥11 K/min 21-4℃≥6 K/min |
95-21℃ ≥11 K/min 21-4℃≥3 K/min |
/ | ||||||
| Temperature Uniformity | ≤±0.5℃ at 37℃ ≤±0.5℃ at 45℃ ≤±1℃ at 75℃ ≤±1℃ at 95℃ |
≤±1℃ at 4℃ ≤±0.5℃ at 15℃ ≤±0.6℃ at 37℃ ≤±0.6℃ at 40℃ ≤±2℃ at 90℃ |
≤±1℃ at 4℃ ≤±1℃ at 15℃ ≤±1℃ at 37℃ ≤±1℃ at 40℃ ≤±2℃ at 90℃ |
/ | ||||||
More than 240 configurations can be provided based on FAN to meet your increasingly complex application requirements, improve your lab efficiency and empower your researchers and clinical professionals to overcome challenges in sample processing.
