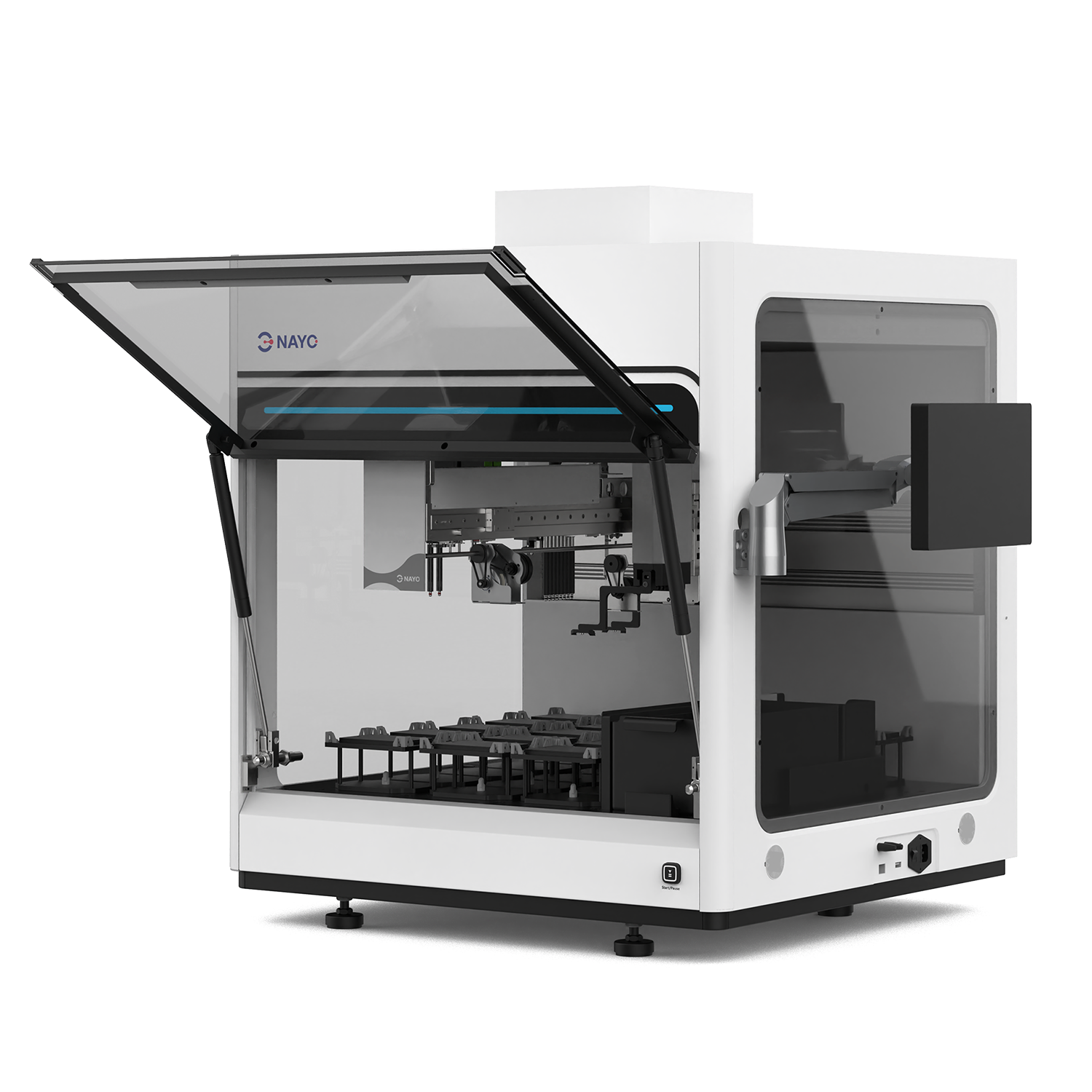

The A8 pro is the professional-grade fully automated liquid handling workstation based on Flexible Architecture of NAYO (FAN). Its modular and scalable design supports the third-party integration. With customizable X-axis deck expansion, various multi-function arm configurations and on-deck modules, it covers diverse application scenarios. Precisely gripping and transferring microplates and tube consumables, it can meet varied liquid handling requirements. Optional HEPA filter hood and UV lights are available for a sterile workspace.
2-channel flexible pippetting module
8-channel fixed pippetting module
Plate transportation module
Multiple module integration
Feature pLLD realizes real-time monitoring during pipetting process
Plate present monitoring during plate transportation
Worktable is easily configurable to meet the requirements of workflow
First-generation Sequencing
Nucleic Acid Extraction
Sample Magnetic Bead Purification
PCR and qPCR
NGS
Organoid Drug Sensitivity Testing
Cell Level Detection
Flow Cytometry Sample Preparation
ELISA
HTS Compound Screening
Compound Rearrangement
Compound Serial Dilution
Compound Selection and Rearrangement
PCR
NGS
Blood coagulation
| Dimensions | 790/1240mm(L)×730mm(W)×890mm(H) |
| Weight | 128+kg |
| Power Supply | ~100-240 VAC， 50/60Hz |
| Arm Configurations | Fixed 8-Channel+Flexible 2-Channel+Gripper Fixed 24-Channel+Flexible 1-Channel+Gripper Fixed 4-Channel+Gripper Flexible 4-Channel |
| Deck Capacity | 20-35 |
| Pipetting Principle | Air displacement |
| Pipetting Range | 1μL-1000μL |
| Liquid Level Detection | Pressure liquid level detection |
| Precision（CV） | ≤4%≤5μL; ≤1%≤200μL |
| Precision of Arm Movement | ± 0.1 mm |
| Environmental Control | UV & HEPA |
