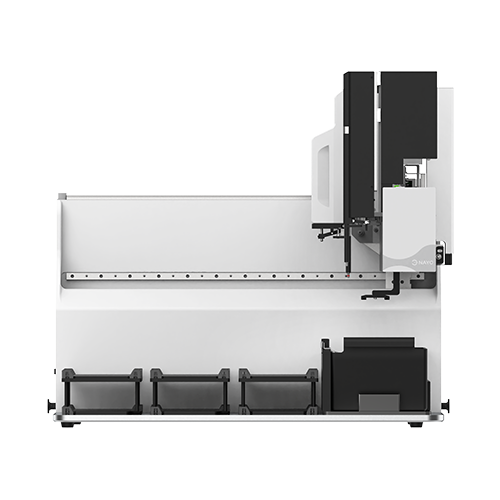

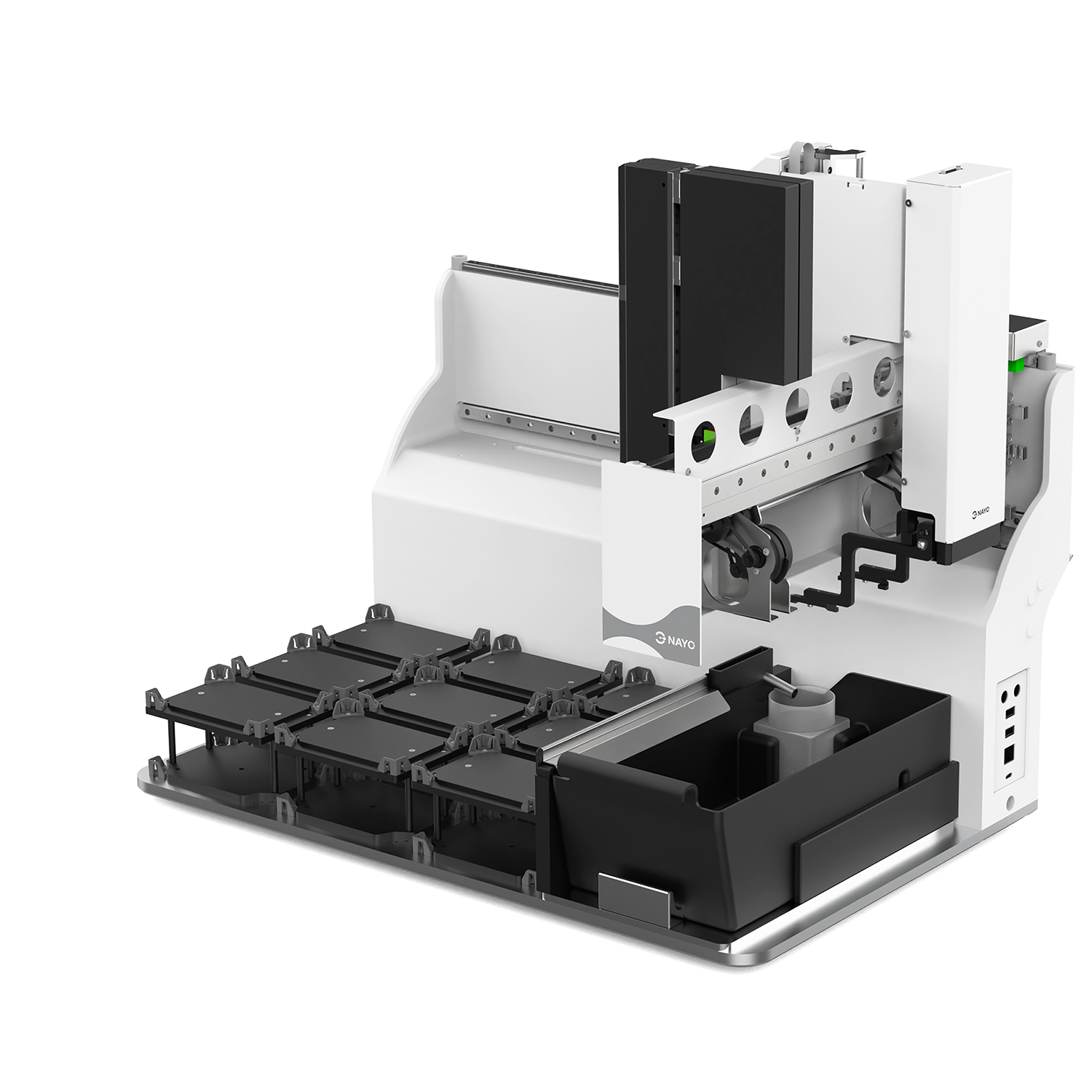

The A8 mini is the benchtop-grade automated liquid handling tool based on Flexible Architecture of NAYO(FAN) featuring various configurations, modular design, compact dimensions and self-assembly flexibility. It can cover diverse application scenarios and effortlessly meet varied liquid handling requirements through customizable multi-function arm configurations and on-deck modules. It can easily fit into a biosafety cabinet or alternative light curtain which enhances process security.
2-channel flexible pippetting module
8-channel fixed pippetting module
Plate transportation module
Feature pLLD realizes real-time monitoring during pipetting process
Plate present monitoring during plate transportation
Multiple module integration
Conserves precious bench space and fits easily into biosafety cabinet
First-generation Sequencing
Nucleic Acid Extraction
Sample Magnetic Bead Purification
PCR and qPCR
Organoid Drug Sensitivity Testing
Cell Level Detection
Flow Cytometry Sample Preparation
ELISA
HTS Compound Screening
Compound Rearrangement
Compound Serial Dilution
Compound Selection and Rearrangement
PCR
Blood coagulation
The software can be used to perform 3D modeling of instruments, work surfaces and consumables, with flexible configuration and intuitive layout display
Drag-and-drop editing mode, graphical interface, process simulation preview, simple and easy to use
Flexible logic command parameter settings, multiple variable logic, flexible adaptation to various applications
| Dimensions | 665mm(L)×525mm(W)×610mm(H) |
| Weight | 47kg |
| Power Supply | ~100-240 VAC， 50/60Hz |
| Arm Configurations | Fixed 8-Channel+Flexible 2-Channel+Gripper Fixed 8-Channel+Flexible 2-Channel Fixed 8-Channel+Gripper Flexible 4-Channel |
| Deck Capacity | 12 |
| Pipetting Principle | Air displacement |
| Pipetting Range | 1μL-1000μL |
| Liquid Level Detection | Pressure liquid level detection |
| Precision（CV） | ≤4%≤5μL ；≤1%≤200μL |
| Precision of Arm Movement | ± 0.1 mm |
| Environmental Control | Fit into a biosafety cabinet or alternative light curtain |
